101G Minipod

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

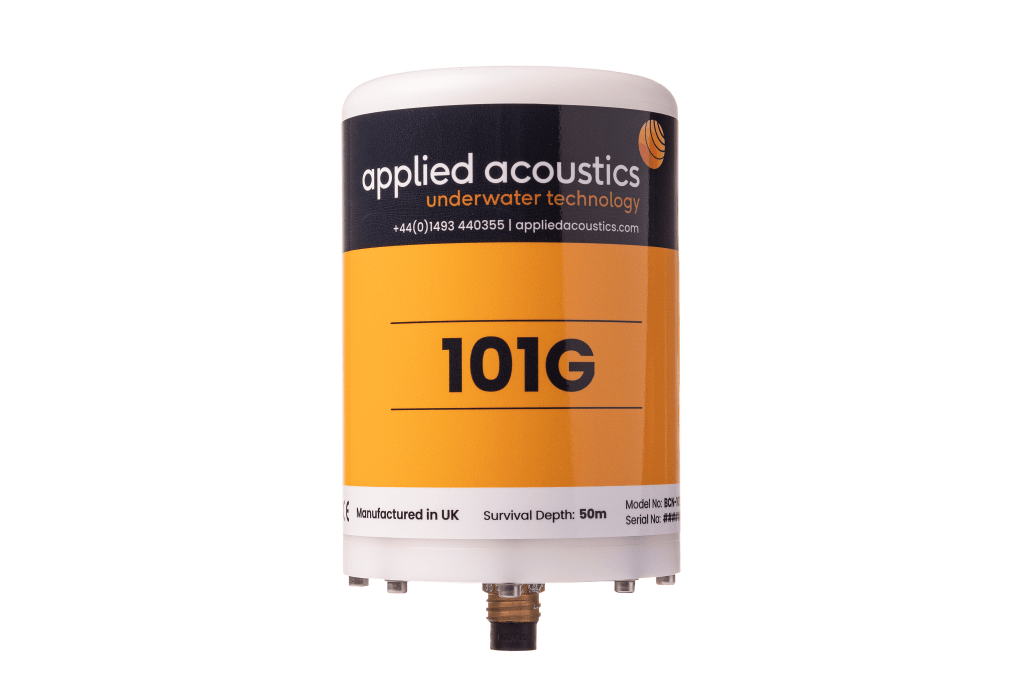

GNSS receiver - 101G-minipod

The 101G MiniPod is a lightweight, ruggedised GNSS receiver that transmits data back to a vessel or the shoreline.

Designed to survive 50m immersion, this shock mounted robust GNSS receiver has both wired and wireless applications, providing streamer head and tail positioning and source positioning for 3D ultra-high resolution geophysical surveys. The 101G MiniPod can be fitted with an internal compass to provide accurate heading, pitch and roll of equipment.

This GNSS receiver is ideal for pairing with our Dura-Spark UHD 240/400 and Dura-Spark UHD 400+400 dual deck sound sources.

Key Data for 101G Minipod

Receiver type GNSS Multi-frequency L1 & L2, RTK with carrier phase
GNSS compatibility GPS, GLONASS, BeiDou, QZSS & GALILEO
Channels 372
SBAS tracking 3 channel parallel tracking
Differential options SBAS, Autonomous, External RTCM (V3.2) or CMR, RTK, L-Band (Atlas) DGPS
Depth rating 50m
Dimensions 170 x 115mm
Weight 63.5kg
