Bauer KAP220-30DA

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

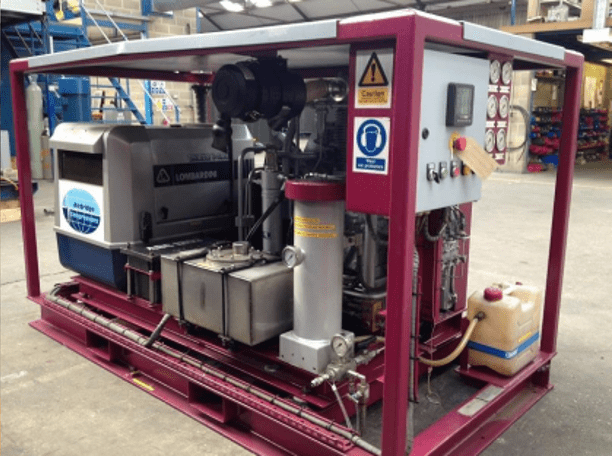

The Bauer KAP220-30DA is a robust, 350bar breathing air compressor. These units are typically used in dockyards, and on naval and oil field support vessels. They are also suitable for manufacturing and industrial applications such as tool driving and blow moulding. We also have the electric Bauer KAP220 breathing air compressor.

Key Data for Bauer KAP220-30DA

Make Bauer
Model KAP220-30DA
Duty 34 scfm
Max. pressure 350 bar
Prime mover Lombardini SILED 1400 diesel engine
Noise level 90 dBA at 2m
Transmission Belt drive
Cooling Air cooled
Control Fully automatic by pressure switch
Condensate Timed drainage to a receiver
Control voltage 12vdc
Enclosure DNV crash frame with sling, forklift pockets and 50L bottle
Dimensions (with crash frame) 276 x 185 x 185 cm
Weight (with crash frame) 2,050 kg
Dimensions (without crash frame) 223 x 118 x 131 cm
Weight (without crash frame) 1,094 kg
