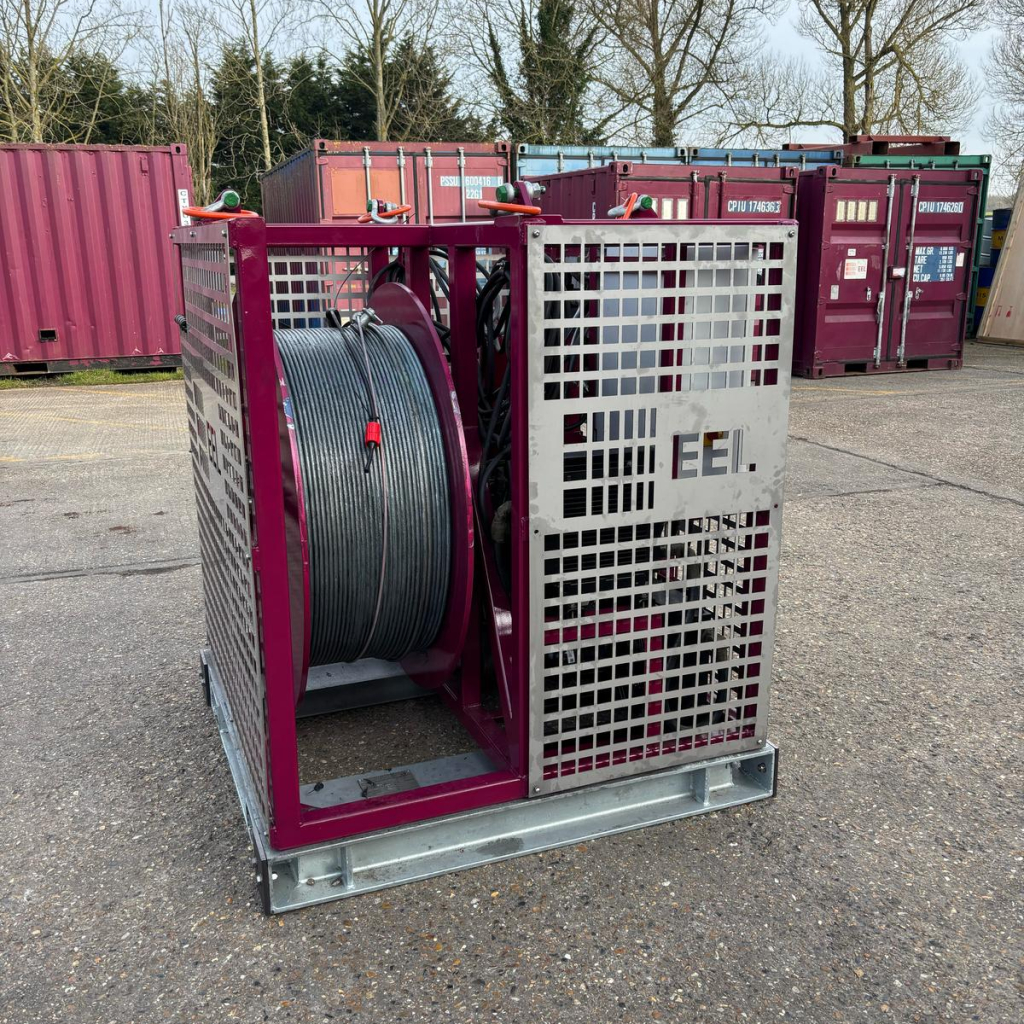

Compact Constant Tension Winch

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

This compact, self-contained constant tension winch offers adjustable tension up to 400 kg and is designed for offshore and nearshore applications. With a small footprint and the ability to accommodate Coax or HMPE rope up to 600m, it delivers efficient handling for a range of operations. Equipped with a Focal-180 16-way slip ring, built-in power supply phase monitoring, and temperature-controlled cooling, this winch ensures reliable performance in demanding conditions.

Key Data for Compact Constant Tension Winch

Drum width 39.5 cm
Drum outer diameter 117 cm
Drum inner diameter 65 cm
Line pull max. 400 kg at 125 bar
Transmission Built-in air-cooled HPV, max. 200 bar, 33 L/m
Speed range 122m/min - 207m/min
Data connection 16-way FOCAL 180 slip ring
Power cable Titanex HO7RN-F 4G6 30m + 5P x 63A Gewiss IP68 plug
Enclosure Steel crash frame with certified lift points
Dimensions 143 x 138 x 166 cm
Weight (Max. gross) 2,000 kg
Weight (Tare) 540 kg
Weight (Payload) 1,460 kg
Control panel Protection for phase sequence
Control panel Protection for lever in 0 position for pump start
Cooling fans Auto and manual control
