CSP-S 6000

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

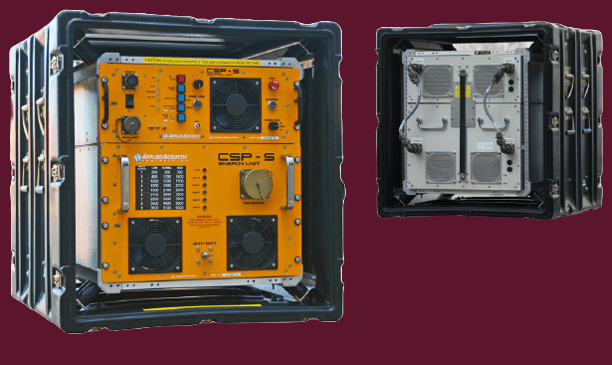

The CSP-S is a compact ‘all in one’ 6000 Joule power source for marine sparker applications, specifically the Applied Acoustics’ Delta Sparker.

The high charge rate allows for fast, high energy sound pulses from sparker sound sources. All settings are externally selectable including voltage and capacitance. Supplied with a robust transit case, H.V. junction box, mains lead and H.V. connector plug.

Key Data for CSP-S 6000

Mains input 200 - 240 VAC single phase. 45-65Hz @ 5.0kVA. Single phase 3 pin connector
Voltage input 2.5 –3.9kV, 4 pin interlocked connector
Output energy 200–6000J
Charging rate 2500J/s
Capacitance 832μf, 10^8 shot life. No electrical ringing which affects the sound pulse.
Repetition rate 4 pps maximum
Dimensions 68 x 58 x 92 cm
Weight 117 kg (incl. case and cover)
Download PDF
