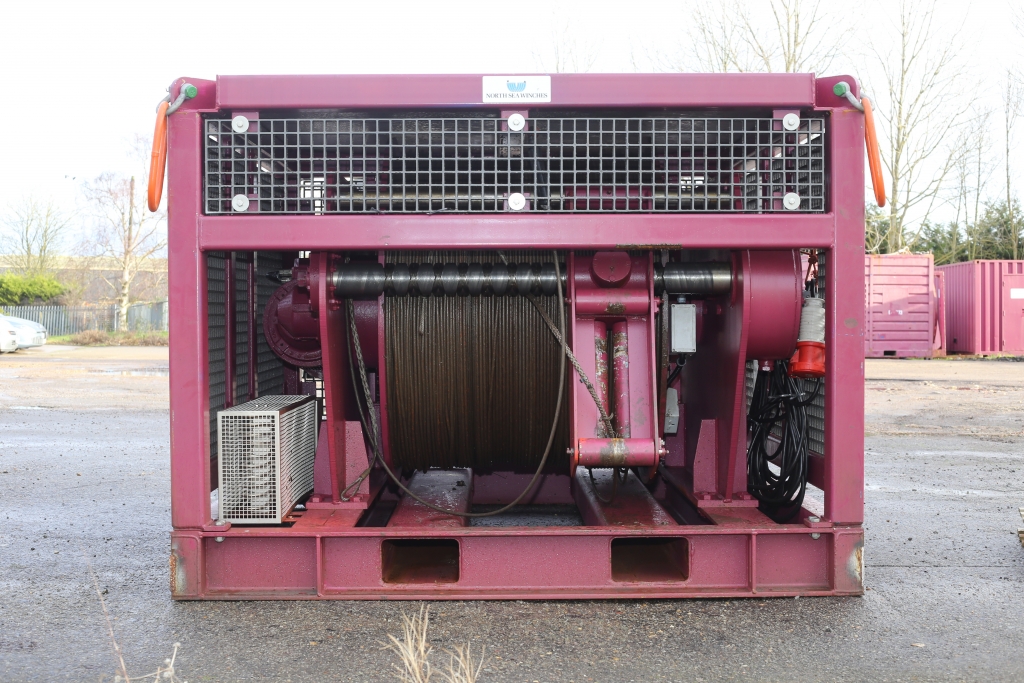

Deep Water Continuous Tension Winch
Constant tension winches
Enquire Now
Fast delivery anywhere in the world, direct from the experts.
+44 1502 714822
Key Data for Deep Water Continuous Tension Winch
Prime mover
11kW electric motor
Power
380V, 50Hz or 460V, 60Hz
Drum width
90cm
Drum outer diameter
125cm
Drum inner diameter
95cm
Line pull
Variable, max. 1,100kg
Speed
51m/min inner wrap, 60m/min outer wrap
Data connection
16-way FOCAL slip ring
Enclosure
Steel crash frame
Dimensions
225 x 203 x 153cm
Weight
3,750kg
