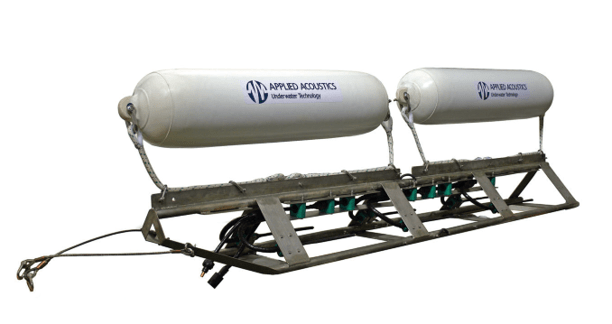

Delta Sparker

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

The Delta Sparker is our most powerful sparker available in the range and is intended for higher penetration sub-bottom profiling and thus offers a lower frequency sound pulse. Stable under tow, the frame is buoyed and is easily deployed.

As a multi-tip sparker array, the Delta can also be used in UHR multi-channel seismic surveys utilising 24 or 48 channel streamers such as during geohazard assessment, construction projects or shallow target
2D exploration.

Different sparker tips, single or multiple arrangements, can be used to increase resolution or penetration as required. The tips are easily replaceable for simple field maintenance.

Key Data for Delta Sparker

Manufacturer Applied Acoustics
Recommended power 1500J – 12,000J
Maximum energy input 12,000J
Operating voltage 3000 – 4000 volts
HV cable type AAE HV squid cables
Frequency range 300 Hz to 5 kHz
Penetration 800 mS achieved
Source level 226 dB typical at 6000J
Pulse length 0.3–5 mS dependant on tips and power input
Dimensions 255 x 35 x 25 cm
Weight 50 kg approx.
Material Stainless steel
Buoyancy 2x floats
Depth of tow Adjustable
