Hamworthy 225E 4TH430W100

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

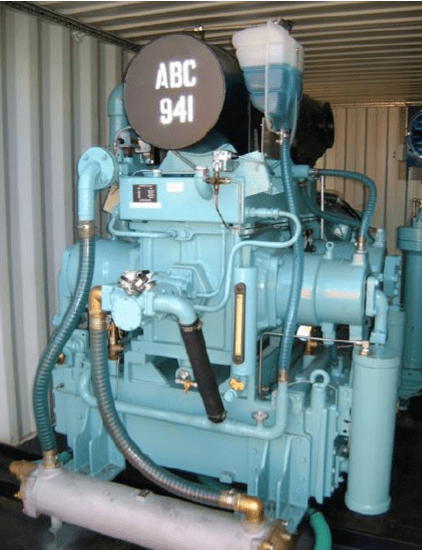

The Hamworthy 225E 4TH430W100 is a high-performance, fully automated compression system designed for demanding industrial applications. With a duty capacity of 225 scfm at 300 bar, this unit is powered by a robust 165 kW prime mover operating at 980 rpm. Featuring direct drive transmission and seawater cooling via a heat exchanger, it ensures efficient and reliable performance. Encased within a durable 20ft ISO container, the unit is built for both mobility and resilience, making it ideal for various operational environments.

Key Data for Hamworthy 225E 4TH430W100

Model 225E 4TH 430W100
Duty 225 scfm @ 300 bar (6.2m³/min)
Prime mover 165Kw, 980rpm, 278amps, 380 / 415v, 50Hz
Transmission Direct drive
Cooling Seawater via heat exchanger
Control Fully automatic by pressure switch
Condensate Timed drainage to a condensate tank
Control voltage 240v
Enclosure 20ft ISO Container, ARMU 8006645
Dimensions 606 x 244 x 260 cm
Weight 10,000 kg
