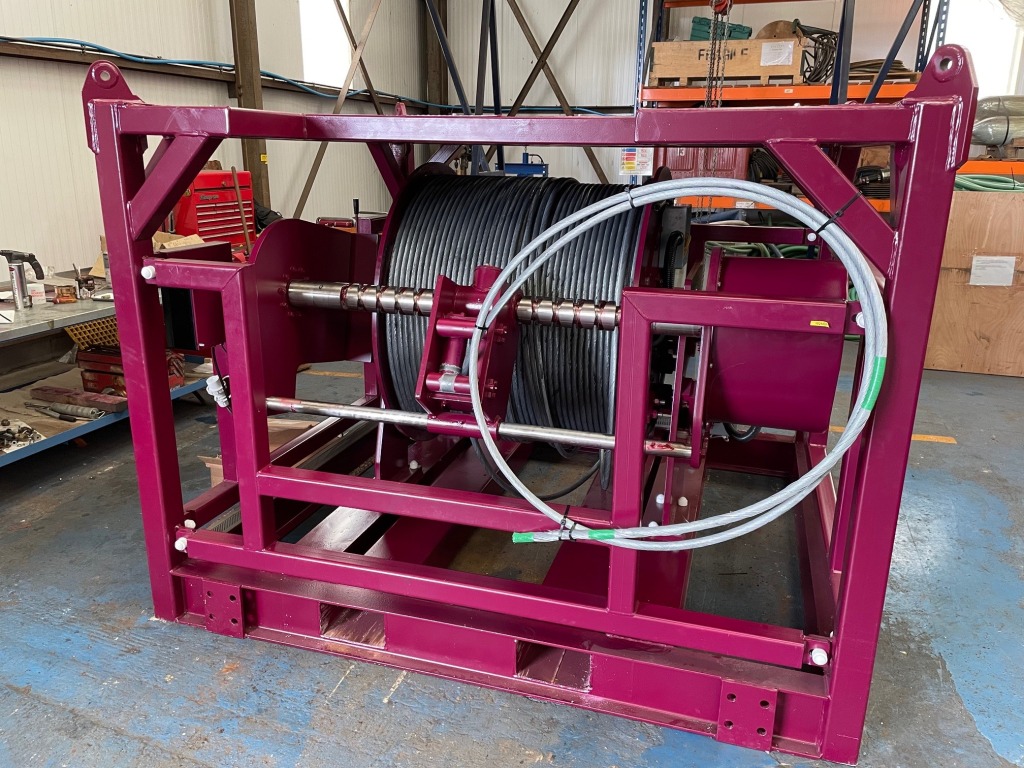

Hydraulic 8T Umbilical Winch

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

This hydraulic 8,000kg-rated lift winch is typically supplied with 500m of 23.9mm coax for lift and coms to a Datem Neptune 5000 CPT. Enclosed in a steel crash frame, with lift points, it’s ideal for geotechnical projects on board vessels.

Key Data for Hydraulic 8T Umbilical Winch

Drive system	Hydraulic
Cable type	Co-axial cable
Length (Capacity)	720m @ 17.27mm Ø or 500m @ 23.9mm Ø
Diameter	17.27mm or 23.9mm
Line pull	Max. 9,850 kg
Speed range	30m/min – 35m/min
Enclosure	Steel crash frame with lift points
Dimensions	250 x 190 x 205 cm
Weight	3,700 kg
