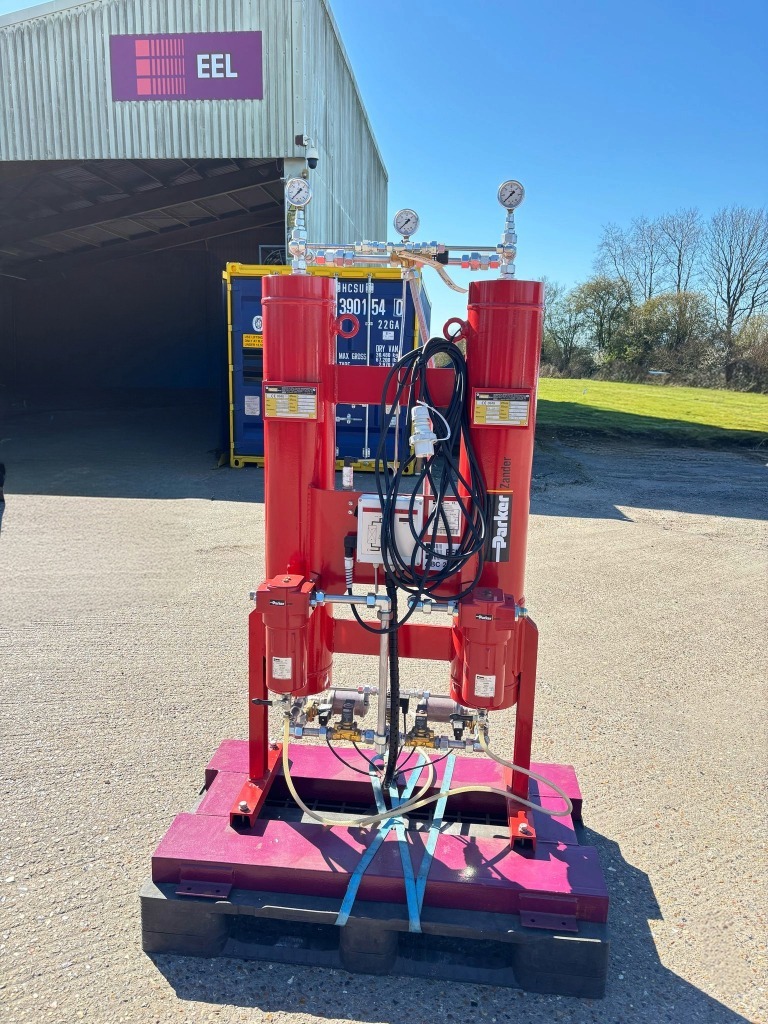

Parker Zander Dryer

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

The Parker Zander HDK 50 bar range of high pressure compressed air dryers are designed to dry compressed air and gaseous nitrogen at high pressure levels of up to 50 bar reliably and efficiently down to a pressure dew point of -40° C and are capable of volume flows up to 1,180 m3/h.

Typical applications for this dryer are in power stations (i.e. start up of diesel generators) as well as marine applications (i.e. tank ventilation, rope tensioning on offshore rigs, start up of generators etc.).

Key Data for Parker Zander Dryer

Make Zander
Model HDK 50 bar series
Product type High pressure absorption
Port size 3/4”
Controller type Multitronic with dew point sensor
Max. flow rate 480m³/h at 50 bar
Max. operating pressure 50 barg, 725.19 psig
Min. operating pressure 4 barg, 58.02 psig
Max. ambient temperature 50° C
Min. ambient temperature 1° C
Ingress protection rating 65
Max. operating temperature 50° C / 122° F
Min. operating temperature 25° C / 77° F
Connection type BSP-P
Electrical requirement 230V, 50-60Hz
Pressure dew point -25 to -70° C / -13 to -97° F
Dimensions 84 x 40 x 148.4 cm
Weight 182 kg
