55kW HPU

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

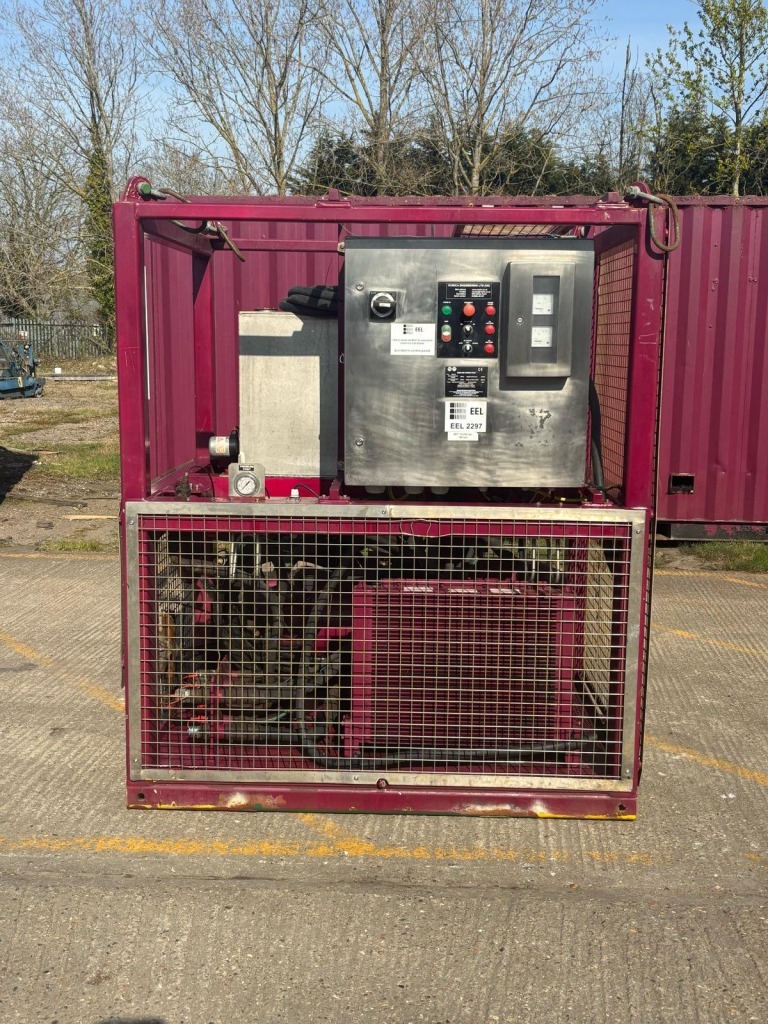

The Romica 55kW Electrical Hydraulic Power Unit consists of, crash frame with lifting lugs, which affords protection during transportation and installation. The frame will enclose and protect the equipment and provide stowage for hydraulic hoses. A 3-phase electrical motor coupled to a pressure compensated piston pump provides the required pressure and flow rates. These HPUs are often paired with our winches for the deployment of geotechnical equipment.

Key Data for 55kW HPU

Manufacturer Romica Engineering
Electric motor details 55 kW IP56
Electric motor voltage 380 / 415 / 440 / 460 V, 50/60Hz
Hydraulic pressure Max. 300 Bar
Hydraulic flow rate 150 lpm at 200 Bar, 120 lpm at 250 Bar
Hydraulic connection port P G 3/4" BSP
Hydraulic connection port T G 1” BSP
Hydraulic connection port D G 1/2" BSP
Reservoir capacity 500 litres
Pressure compensating Yes, manual control
Cooling system Air blast oil cooler when oil >40°C
Tank top breather Desiccant air breather 3-micron rating
Starter/Control Panels IP66 stainless steel enclosure
Dimensions 180 x 150 x 206 cm
Weight (Dry) 1,620 kg
