75kW HPU

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

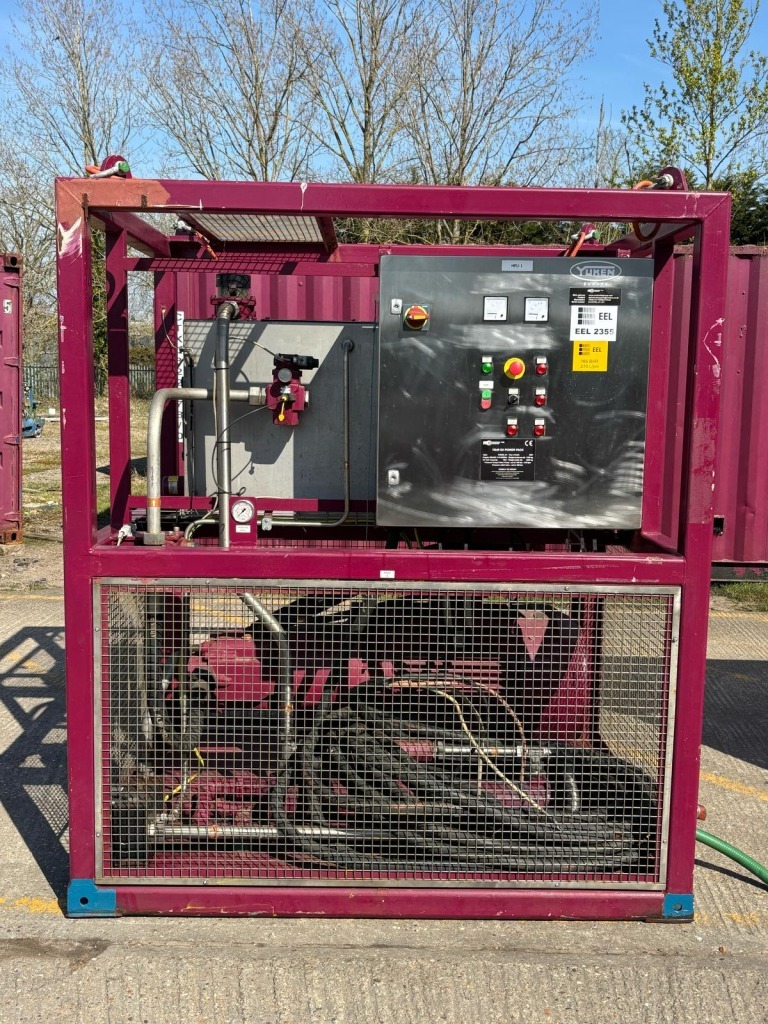

The Romica 75kW Electrical Hydraulic Power Unit consists of, crash frame with lifting lugs, which affords protection during transportation and installation. The frame will enclose and protect the equipment and provide stowage for hydraulic hoses. A 3-phase electrical motor coupled to a pressure compensated piston pump provides the required pressure and flow rates. These HPUs are often paired with our winches for the deployment of geotechnical equipment.

Key Data for 75kW HPU

Manufacturer Romica Engineering
Electric motor details 75 kW IP56
Electric motor voltage 380 / 415 / 440 / 460 V, 50/60Hz
Hydraulic pressure Max. 300 Bar
Hydraulic flow rate 210 lpm at 165 Bar
Hydraulic connection port P G 1” BSP
Hydraulic connection port T G 1.1/4” BSP
Hydraulic connection port D G 1/2" BSP
Reservoir capacity 700 litres
Pressure compensating Yes, manual control
Cooling system Seawater cooling
Tank top breather Desiccant air breather 3-micron rating
Starter/Control Panels IP66 stainless steel enclosure
Dimensions 185 x 145 x 220 cm
Weight (dry) 1,700 kg
