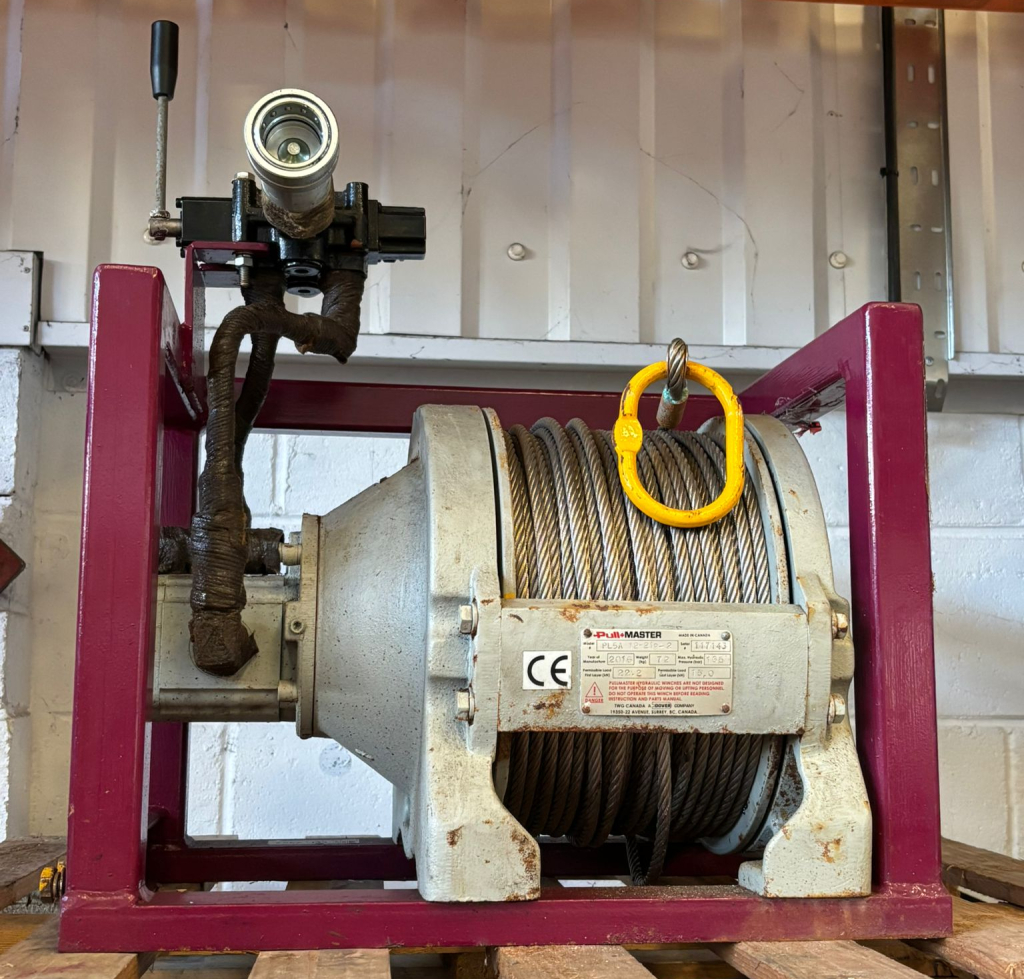

Hydraulic Tugger Winch

Enquire Now Fast delivery anywhere in the world, direct from the experts. +44 1502 714822

This compact tugger winch is ideal for small survey vessels with its small footprint. Paired with a small HPU, this tugger winch is often paired with our OSIL mini vibrocorer; for use in inshore waters, shallow seas, and locations with difficult access.

Key Data for Hydraulic Tugger Winch

Make Pullmaster
Model PL5A-12-212-2
Flow 42 l/min
Pressure 165 bar
Drum torque 2207 Nm
Drum RPM 29.5
Full drum line pull 14.6 kN
Full drum line speed 28 m/min
Wire 100m 7mm wire rope, rated 0.5T
Weight 115 kg
Dimensions 54 x 34 x 54 cm
